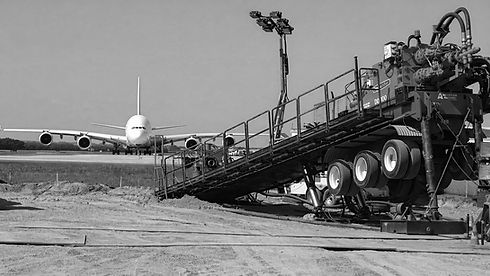

Plant & Equipment
Pipeline Drillers Group maintains an established fleet of horizontal directional drilling (HDD) rigs and supporting equipment, enabling the delivery of trenchless pipeline installations across a range of ground conditions and project environments. Maintaining in-house plant capacity allows projects to be appropriately resourced from mobilisation and supports continuity of drilling operations throughout delivery.
Key Metrics
Bore Length Capability
20 m to 2,500 m HDD installations
Pipeline Diameter Range
25 mm to 1,500 mm pipelines
Pipeline Materials
Steel and HDPE
Ground Conditions
Clay, cobble, sand, shale and rock
Rock Strength Capacity
Up to 300 MPa
Bore Path Navigation
Walkover and wireline systems including Gyro
Our fleet provides capability across a range of bore sizes and lengths, supporting installation of steel and HDPE pipelines in conditions including clay, sand, shale and rock.
Drilling operations are supported by mud management and drilling fluid systems, including pumps ranging from 150 gpm to 800 gpm and cleaning systems capable of processing between 200 gpm and 1000 gpm. These systems support control of drilling parameters and fluid returns during drilling and reaming operations.
Maintenance of plant and equipment is undertaken through a combination of in-house servicing and engagement with original equipment manufacturers and specialist providers. Yard-based operations and maintenance personnel provide ongoing support to active projects, including equipment preparation, servicing and repair.
The available plant and support equipment allow Pipeline Drillers Group to operate multiple drilling spreads concurrently, with capacity to deliver three to four HDD projects at any one time.
Maxi Rigs
American Augers DD1100
Capability
500 Tonnes
Pulldown/Pullback
Max. Thrust: 1,100,000 (500t)
Torque (ft-lb): 100,000 (45t)
Power
Rating: 2x 765 HP
= 1,530 HP
Hole Diameter
1,600 millimetres
Gallagher 660
Capability
330 Tonnes
Pulldown/Pullback
Max. Thrust: 660,000 (330t)
Torque (ft-lb): 75,000 (34t)
Power
Rating: 800 HP
Hole Diameter
1,600 millimetres
HERRENKNECHT HDD250
Capability
250 Tonnes
Pulldown/Pullback
Max. Thrust: 150,000 (250t)
Torque (ft-lb): 60,000 (27t)
Power
Rating: 640 HP
Hole Diameter
1,500 millimetres
HERRENKNECHT SDD250
Capability
250 Tonnes 10°- 46° entry
Pulldown/Pullback
Max. Thrust: 551,000 (250t)
Torque (ft-lb): 60,000 (27t)
Power
Rating: 700 HP
Hole Diameter
1,575 millimetres
Vermeer 330
Capability
150 Tonnes
Pulldown/Pullback
Max. Thrust: 330,000
(150 tonnes)
Torque (ft-lb): 50,000
(23 tonnes)
Power
Rating: 540 HP
Hole Diameter
1,500 millimetres
CMS HDD180
Capability
90 Tonnes
Pulldown/Pullback
Max. Thrust: 180,000
(90 tonnes)
Torque (ft-lb): 35,000
(16 tonnes)
Power
Rating: 500 HP
Hole Diameter
1,400 millimetres
Midi Rigs
Vermeer D100x120 (Two Units)
Capability
46 Tonnes
Pulldown/Pullback
MaMax. Thrust: 92,000 (46t)
Torque (ft-lb): 12,000 (5.5t)
Power
Rating: 225 HP
Hole Diameter
1,000 millimetres
Vermeer DD80x100
Capability
38 Tonnes
Pulldown/Pullback
Max. Thrust: 76,000 (38t)
Torque (ft-lb): 10,000 (4.5t)
Power
Rating: 200 HP
Hole Diameter
1,000 millimetres
Pipe Ramming
with Pneumatics
Pipeline Drillers has industry leading capacity and capability in Pipe Ramming. Possessing both a Grundoram Goliath and Taurus Pipe Ramming tool, we are uniquely positioned to combine our extensive Drill Rig and support equipment fleet with the Pipe Ramming services.
Such capability allows Pipeline Drillers to deliver where others can’t. This is evidenced through our extensive history of installing long distance bores in unconventional geology, through the installation of pipe casing, using the Grundoram tools. Pipeline Drillers have successfully hammered casings varying in widths from 610mm all the way through to 1,800mm.
Our Currumbin Creek Crossing, Lyton Terminal Expansion and Taswater Launceston case studies give some real life examples of where Pipeline Drillers have delivered this capability.
The specifications and capabilities of these tools are:
